3.8 Local Free AI: KoboldCpp

KoboldCpp is a local inference tool that can load GGUF models and provide an OpenAI-compatible API. After setup, MiniTavern can access models running on your computer through LAN, without any cloud API key.

Version note

• MiniTavern for iOS: works directly with this setup.
• MiniTavern for Android: use v1.5.0+. On older versions, Android 9.0+ may block cleartext HTTP for apps, causing browser access to work while app access fails.

MiniTavern also provides a one-time purchase version with no subscription and no ads: MiniTavern Ultra. If you use KoboldCpp frequently, Ultra can be a good mobile option.

---

Core configuration

To connect MiniTavern to KoboldCpp, prepare:

• Host IP: usually starts with 192.168 or 10. (for example 192.168.1.75)
• Port: default 5001 (or your actual startup port)
• Base URL format: http://192.168.1.75:5001/v1

Important

• Use http (not https)
• URL must include the port (usually 5001)
• URL must end with /v1 (OpenAI-compatible path)

Example: http://192.168.1.75:5001/v1

---

Requirements

• A computer running KoboldCpp (Windows/macOS/Linux)
• Phone and computer on the same Wi-Fi
• A chat model (.gguf) loaded in KoboldCpp
• Host set to 0.0.0.0 at startup (LAN access enabled)

---

Steps

Preparation: understand three addresses

Most connection failures come from mixing these up:

Name	Example	Purpose	Accessible from phone
Bind address	0.0.0.0	Listen on all interfaces	❌ No direct access
Localhost	127.0.0.1	Loopback on this computer only	❌ Not from other devices
LAN address	192.168.1.75	Reach host from LAN devices	✅ Yes

Step 1: start KoboldCpp with LAN listening

1. In KoboldCpp GUI, set Host to 0.0.0.0.
2. Use Port 5001 (or your custom port).
3. Load a chat model and start the service.

Logs often show 127.0.0.1. That output alone does not indicate LAN status. Use Step 3 verification as ground truth.

Step 2: find your computer LAN IP

On the computer running KoboldCpp, check IPv4:

• macOS: System Settings → Network → Wi-Fi → Details → TCP/IP → IPv4
• Windows: run ipconfig and check WLAN IPv4

Record an address like 192.168.1.75.

Step 3: perform two connectivity checks

From a phone browser on the same Wi-Fi, open:

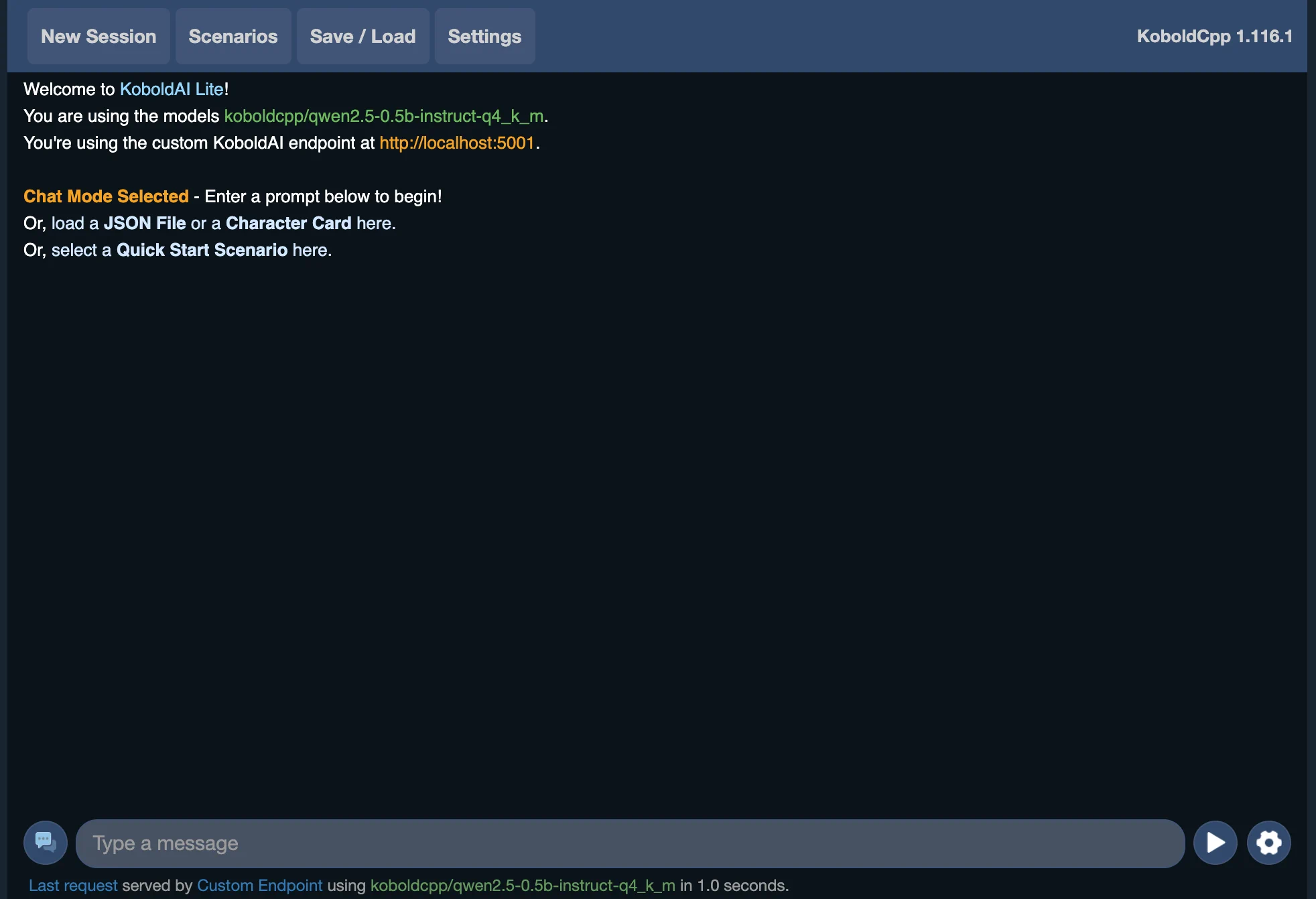

http://192.168.1.75:5001

Check 1 (Web UI) expected: KoboldCpp page opens.

Then open:

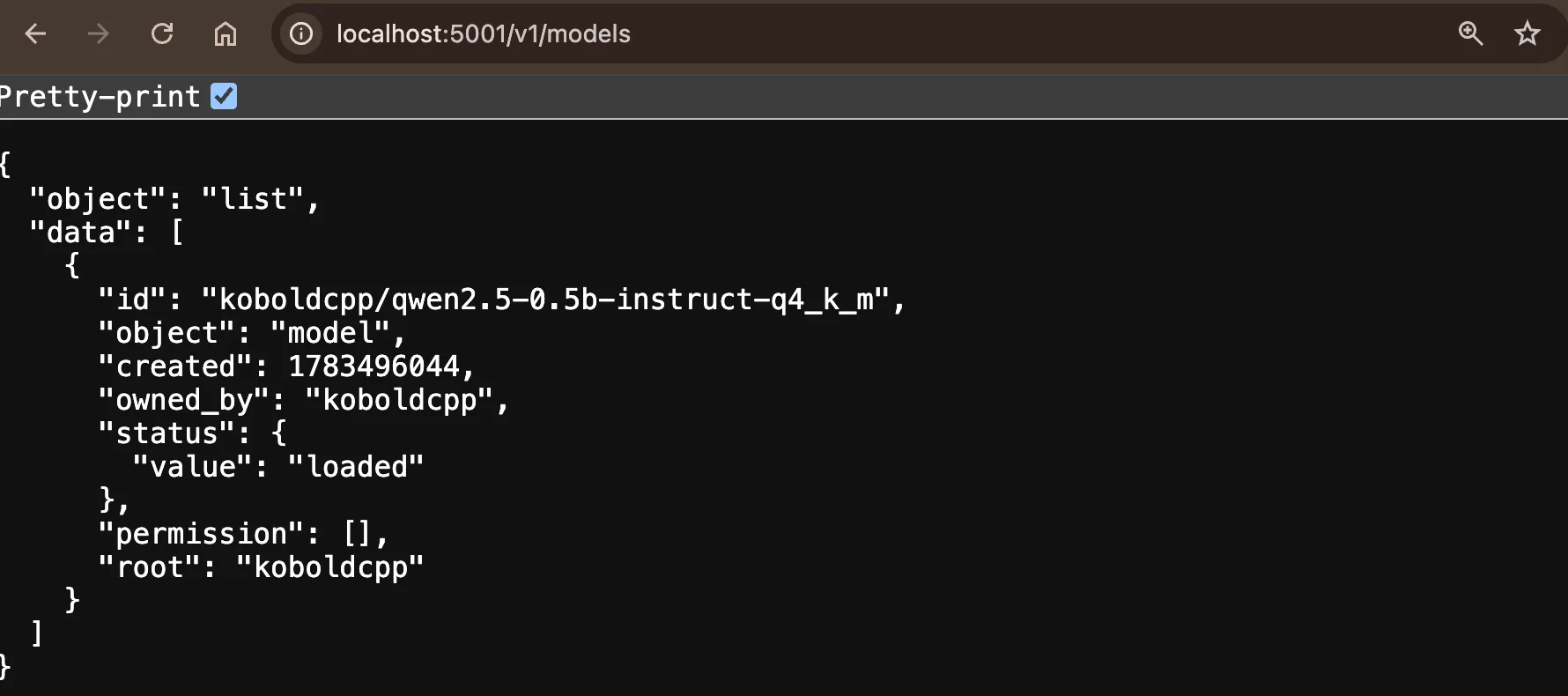

http://192.168.1.75:5001/v1/models

Check 2 (model list) expected: model list JSON returns.

If checks fail, verify:

• Host is 0.0.0.0
• Phone and PC are on the same Wi-Fi (not guest network)
• URL includes :5001
• Router AP isolation is disabled

Step 4: configure MiniTavern

1. Open MiniTavern → Settings → LLM Settings → Configure LLM.
2. Choose provider:
   • v1.4.x: Other LLM
   • v1.5.x+: Custom (OpenAI protocol)
3. Set Base URL:

http://192.168.1.75:5001/v1

4. API Key can be empty.
5. Fetch model list, select model, test connection, then save.

---

FAQ

Q: Web UI opens in browser, but MiniTavern cannot fetch models?

A:

• On Android, confirm version is v1.5.0+;
• Verify Base URL includes both :5001 and /v1;
• If needed, set API Key to a placeholder like local.

Q: Why can't I access http://0.0.0.0:5001?

A: 0.0.0.0 is a bind address, not a routable access address. Use http://<your-lan-ip>:5001.

Q: Logs show 127.0.0.1. Is LAN access not enabled?

A: Not necessarily. LAN is confirmed only when Step 3 works: phone can open Web UI and /v1/models.

---
